密練式捏合機
產品說明

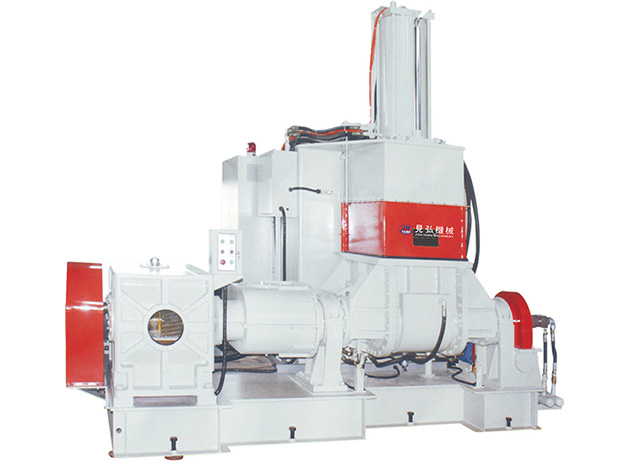

密練式捏合機
DISPERSION KNEADER
技術參數
左右尚有資訊| TYPE型號 | Maxing Capacity | Main power(HP) | TILTING POWER (HP) | CYLINDER DIAMETER (Mm) | Tilting Angle | Material Feed Type | Rotor Speed Front/Back (r.p.m) | Machine N.W(Kgs) | Machine Dimension (LXWXH)mm |
|---|---|---|---|---|---|---|---|---|---|
| JHM-DK5 | 5L | 10 | 0.5 | ψ120 | 110 | FRONT | 39/30 | 1100 | 2100*1000*2100 |
| JHM-DK10 | 10L | 20 | 1 | ψ160 | 110 | FRONT | 39/30 | 2300 | 2200*1350*2250 |
| JHM-DK35 | 35L | 30 | 3 | ψ250 | 110 | FRONT/BACK | 39/30 | 6500 | 3000*1920*2840 |
| JHM-DK55 | 55L | 100 | 5 | ψ300 | 110 | FRONT/BACK | 39/30 | 8500 | 3400*2500*3250 |
| JHM-DK75 | 75L | 150 | 5 | ψ350 | 110 | FRONT/BACK | 39/30 | 10800 | 3850*2560*3320 |
| JHM-DK110 | 110L | 200 | 7.5 | ψ430 | 110 | FRONT/BACK | 39/30 | 14000 | 4100*3000*3750 |
